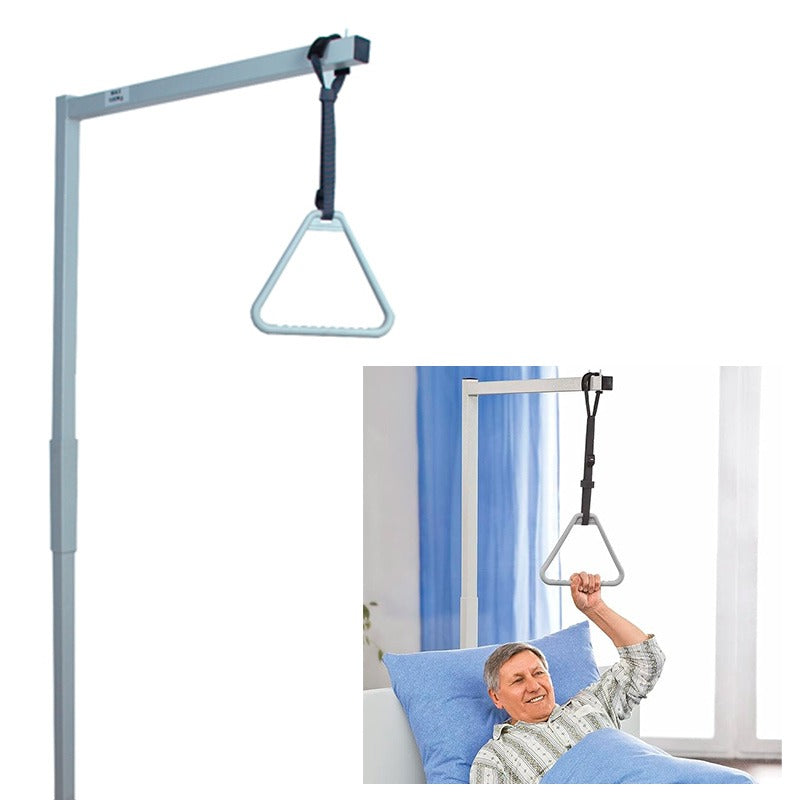

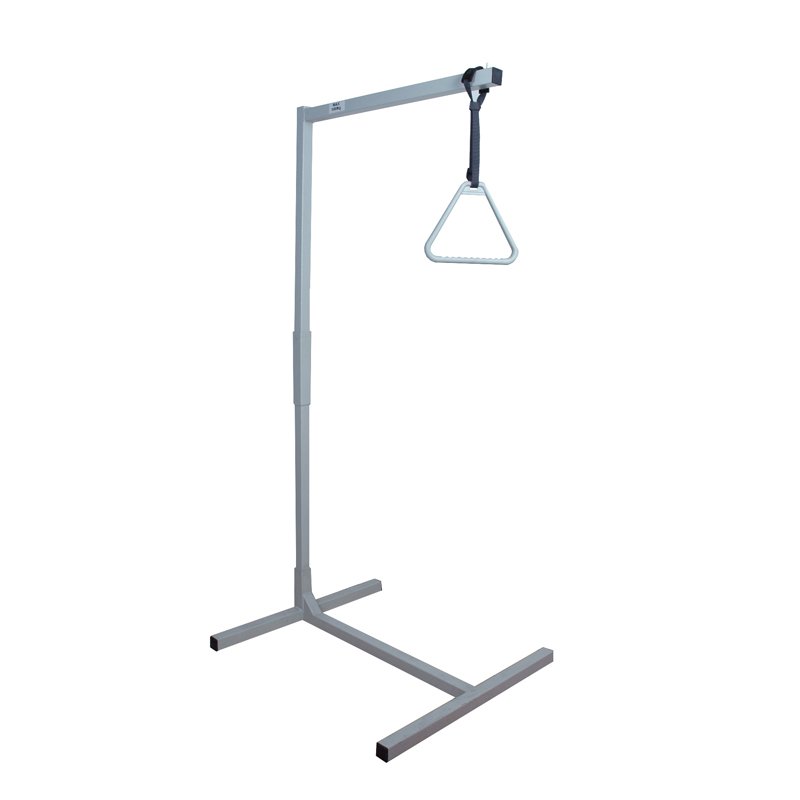

Free-Standing Bed Trapeze

Dimensions of the Bed Trapeze:

• Bar Height: 176 cm
• Bar Length: 79 cm
• Base Width: 75.5 cm
• Base Height: 4.0 cm

Assembly Instructions

1. Place the foot of the bed trapeze on the floor. Remove the protective film.

2. Insert the mounting rod into the foot's opening. Make sure the thick end of the rod faces upward. Refer to any arrow markings on the rod.

3. Tighten the screw into the foot to secure the mounting rod.

4. Insert the angle rod into the mounting rod's opening. Ensure the angle rod extends beyond the foot.

5. Attach the handle at the end of the angle rod. Pull the loop over the rod, close, and secure it.

6. Depending on the bed's height and the arm's length, the handle's position can be adjusted.
