Seniorshop | SKU: 250559

Mounting set for support handle, Black cover button

€13,95

Delivery

Delivery Time: 1-3 business days
Free Shipping on orders over 500 DKK*

Includes Black Cover Caps

Mounting set for support bars. Contains French screws, rawl plugs, and black cover caps – set of 4. Use this kit to securely mount wall bars on solid surfaces such as high-quality concrete or brick walls.

NOTE! Do not use this mounting set on soft walls such as plasterboard, wood, or aerated concrete.

This mounting set fits support bar item no. 250561G (see optional accessories)

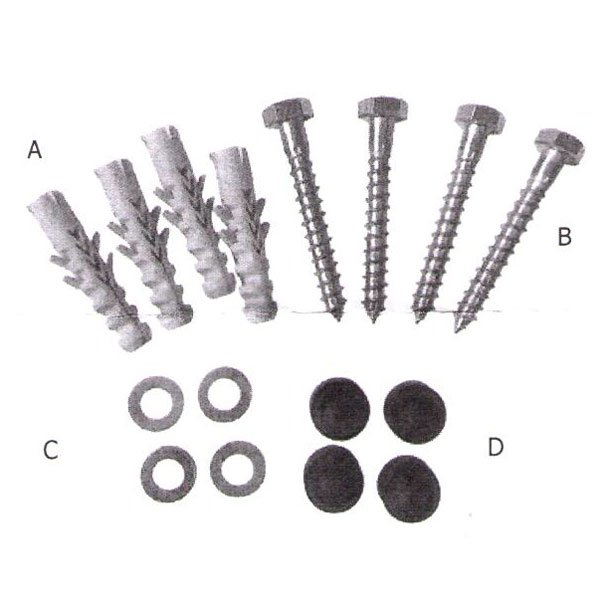

The kit contains:

4 pcs. Fischer nylon plugs, Ø 10 x 60 mm
4 pcs. French screws DIN 571 A2, 8 x 80 mm
4 pcs. Stainless steel washers DIN 125
4 pcs. Black cover caps nv 13

How to Install the Wall Bar:

Hold the wall bar at your chosen position, and mark the position through the mounting holes using a pencil.
Drill four holes Ø 10 mm, at least 80 mm deep. Insert a nylon plug (A) into each hole using a hammer, ensuring each plug is secure and undamaged.
Place a washer (C) on each French screw (B), insert the screws through the wall bar’s holes, and tighten them firmly.
Snap the protective caps (D) onto each screw head.

IMPORTANT! Before using the wall bar, check that it remains solid and doesn’t move, even under heavy load. The installer is responsible for ensuring the bar is securely mounted and the wall type and condition are suitable for installation with this kit.
